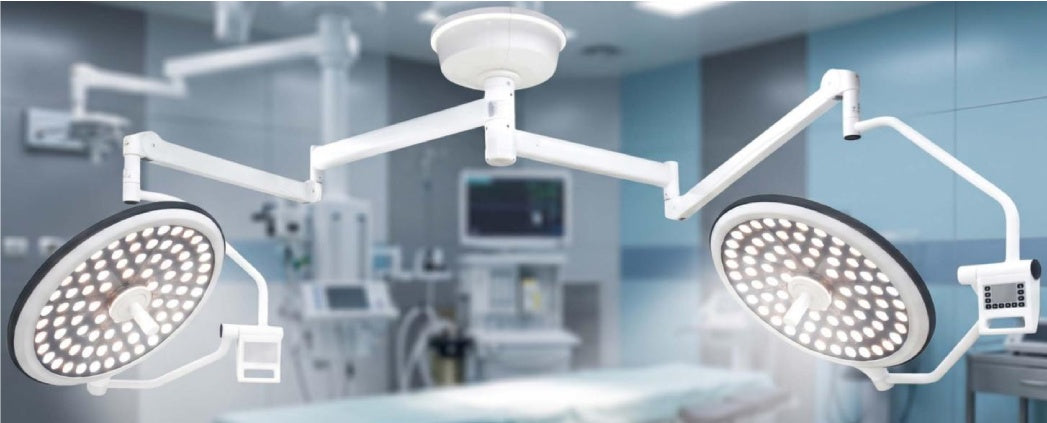

Advanced LED 700
Advanced LED 700
In stock
Operation Lamps
Technical Specifications
Light Head
The surgical light is equipped with a 700 mm dome featuring a field diameter of 120–260 mm. The light head
thickness is 104 mm (±5 mm), providing a compact and streamlined design suitable for modern operating
environments.
Illumination Performance
The lighting system provides stepless brightness adjustment from 1% to 100%, allowing precise control of
light intensity. The illumination depth at 20% is greater than 600 mm, ensuring consistent illumination
throughout the surgical field. Illuminance is continuously adjustable from 40,000 to 160,000 lux.
Light Quality
The light source delivers a Color Rendering Index (CRI) greater than 95, ensuring accurate tissue color
reproduction. The correlated color temperature (CCT) is adjustable between 4,000 K and 5,500 K, enabling
the user to select the most appropriate lighting conditions for different clinical procedures.
Electrical Specifications
The system has a rated power consumption of 70 VA and operates with a universal power input of AC 100–
240 V, 50/60 Hz, ensuring compatibility with international electrical standards.
LED Configuration
The illumination system incorporates 80 high-efficiency LEDs and supports Standard, Endoscope, and Low
Lighting modes. The LEDs are designed for a service life exceeding 50,000 operating hours, ensuring longterm reliability and minimal maintenance requirements.
Operating Environment
The system is designed to operate under ambient conditions ranging from 5°C to 40°C, with an atmospheric
pressure of 700 hPa to 1060 hPa and a relative humidity of 10% to 80% RH.
Couldn't load pickup availability
Couldn't load pickup availability
Text block
View full details Enquire Now
Description
Description
Operation Lamps
Technical Specifications
Light Head
The surgical light is equipped with a 700 mm dome featuring a field diameter of 120–260 mm. The light head
thickness is 104 mm (±5 mm), providing a compact and streamlined design suitable for modern operating
environments.
Illumination Performance
The lighting system provides stepless brightness adjustment from 1% to 100%, allowing precise control of
light intensity. The illumination depth at 20% is greater than 600 mm, ensuring consistent illumination
throughout the surgical field. Illuminance is continuously adjustable from 40,000 to 160,000 lux.
Light Quality
The light source delivers a Color Rendering Index (CRI) greater than 95, ensuring accurate tissue color
reproduction. The correlated color temperature (CCT) is adjustable between 4,000 K and 5,500 K, enabling
the user to select the most appropriate lighting conditions for different clinical procedures.
Electrical Specifications
The system has a rated power consumption of 70 VA and operates with a universal power input of AC 100–
240 V, 50/60 Hz, ensuring compatibility with international electrical standards.
LED Configuration
The illumination system incorporates 80 high-efficiency LEDs and supports Standard, Endoscope, and Low
Lighting modes. The LEDs are designed for a service life exceeding 50,000 operating hours, ensuring longterm reliability and minimal maintenance requirements.
Operating Environment
The system is designed to operate under ambient conditions ranging from 5°C to 40°C, with an atmospheric
pressure of 700 hPa to 1060 hPa and a relative humidity of 10% to 80% RH.
